HQ:NSC36/tipless/No Al
Tipless AFM Probe with 3 Different Soft Tapping Mode AFM Cantilevers
AFM probes of the HQ:NSC36 series have three different tipless soft tapping mode AFM cantilevers on one side of the holder chip. They can be used in various applications.
The HQ AFM probes offer high consistency of the AFM tip radius, the AFM cantilever reflectivity and the quality factor.
Coating
none
AFM Probe Specifications
AFM Tip
| Shape |
|---|
| Shape Tipless |

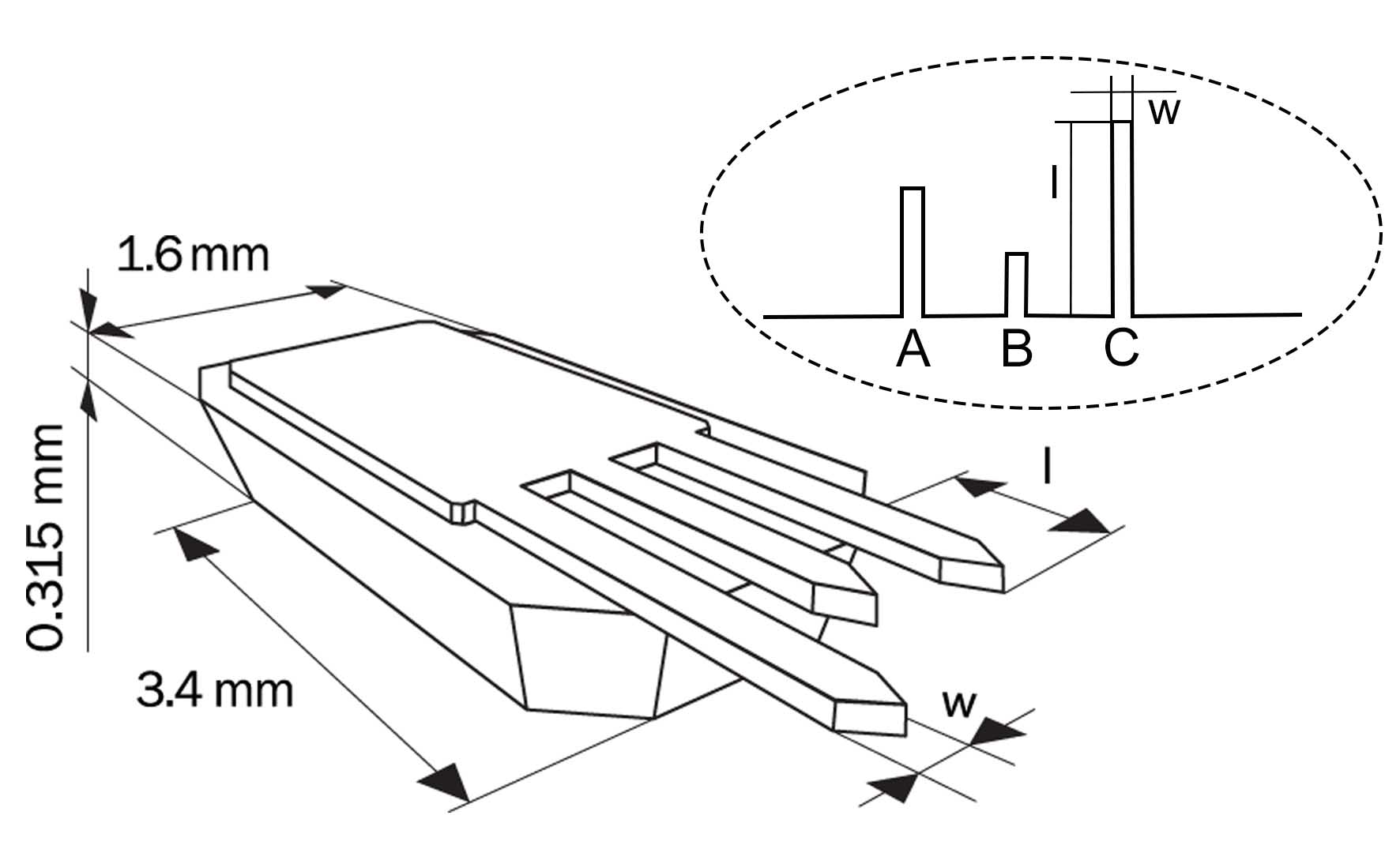

AFM Cantilever
| Cantilever | Shape | Force Const. | Res. Freq. | Length | Width | Thickness |
|---|---|---|---|---|---|---|
| Cantilever Cantilever A | Shape Beam | Force Const. 1 N/m(0.1 - 4.6 N/m)* | Res. Freq. 90 kHz(30 - 160 kHz)* | Length 110 µm(1 - 115µm)* | Width 32.5 µm(29.5 - 35.5µm)* | Thickness 1µm(0.5 - 1.5 µm)* |
| Cantilever Cantilever B | Shape Beam | Force Const. 2 N/m(0.2 - 9 N/m)* | Res. Freq. 130 kHz(45 - 240 kHz)* | Length 90 µm(1 - 95µm)* | Width 32.5 µm(29.5 - 35.5µm)* | Thickness 1µm(0.5 - 1.5 µm)* |
| Cantilever Cantilever C | Shape Beam | Force Const. 0.6 N/m(0.06 - 2.7 N/m)* | Res. Freq. 65 kHz(25 - 115 kHz)* | Length 130 µm(1 - 135µm)* | Width 32.5 µm(29.5 - 35.5µm)* | Thickness 1µm(0.5 - 1.5 µm)* |
* typical values
